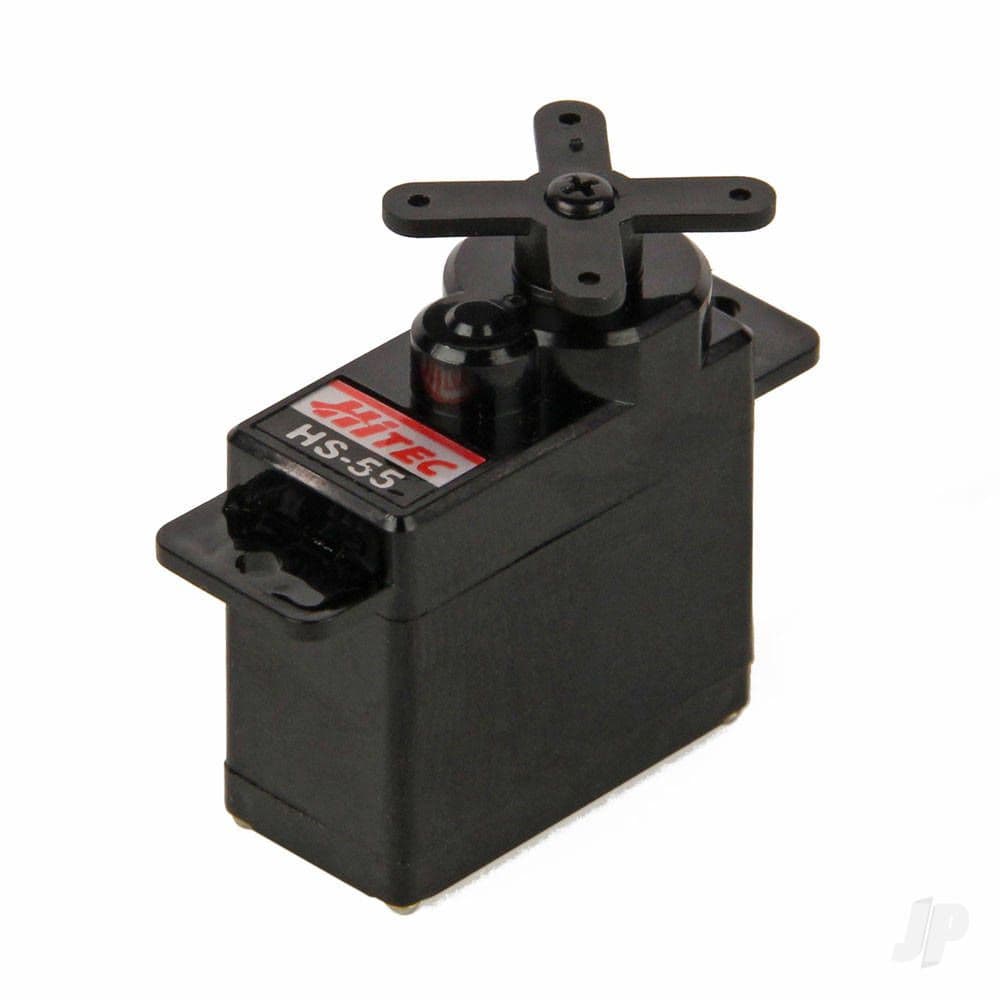

As an alternative to the standard DF rudder servo we also have the Hitec HS-55 available. A very capable micro servo that works well in the DF yachts. To keep the cost down the servo will come without retail packaging. They do come with a servo horn pack.
Key Features
- Affordable performance.
- Precision components.
- Strong, long-lasting nylon gears.
- Arguably the market's most reliable micro servo.
- Direct drive potentiometer.
Product Description
The HS-55 set the standard for affordable performance and reliability, offering precision components that have been engineered to provide long lasting trouble-free service! The HS-55 is by far your best choice when it comes to controlling smaller electric models and park flyers.
Specification:
| Speed at 4.8V (sec): |
0.17 |
| Speed at 6.0V (sec): |
0.14 |
| Torque at 4.8V (kg.cm): |
1.1 |
| Torque at 6.0V (kg.cm): |
1.3 |
| Spline (teeth): |
15 |
| Input Voltage (V): |
4.8 to 6.0 |
Servo Technical Specifications
Weights & Dimensions
| Weight |
8g |
0.28oz |
| Shipping Weight |
0.02kg |
0.04lbs |
|
| Product Height |
24mm |
0.94in |
| Product Width |
12mm |
0.45in |
| Product Length |
23mm |
0.89in |
